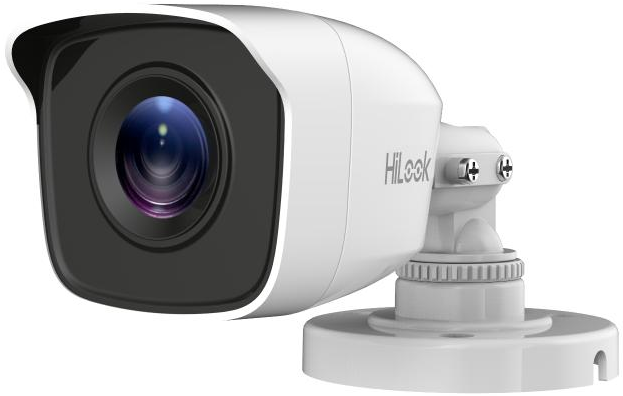

Hikvision HiLook 2 MP Fixed Mini Bullet Camera

Product Overview

The Hikvision HiLook 2 MP Mini Bullet is a compact fixed-lens CCTV camera delivering 1080p video at up to 30 fps with a 2 MP CMOS sensor and IR illumination up to 20 m. It offers switchable TVI/AHD/CVI/CVBS outputs, digital WDR, 2D DNR and smart IR, with optional 2.8 mm or 3.6 mm lenses for wide or narrower fields of view. Housed in an IP66-rated plastic body and powered by 12 V DC, it operates from -40 °C to 60 °C and provides flexible pan/tilt/rotation adjustment for outdoor and indoor surveillance.

Specifications

•Product Code: THC-B120-PC28
•Description: HiLook 2 MP Fixed Mini Bullet Camera
Camera
•Image Sensor: 2 MP CMOS image sensor
•Max. Resolution: 1920 (H) × 1080 (V)
•Min. Illumination: 0.02 Lux@(F2.0, AGC ON), 0 Lux with IR
•Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
•Day & Night: IR Cut Filter
•Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens
•Lens Type: Fixed focal lens, 2.8 mm and 3.6 mm optional
•Focal Length & FOV: 2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°
•Lens Mount: M12

Illuminator
•Supplement Light Type: IR
•Supplement Light Range: Up to 20 m
•Image Parameters Switch: STD/HIGH-SAT
•Image Settings: AGC;Brightness;Smart IR;Mirror;Sharpness
Frame Rate
•PAL: 1080p @ 25 fps
•NTSC: 1080p @ 30 fps
•Day/Night Mode: Auto/Color/BW (Black and White)
•Wide Dynamic Range (WDR): Digital WDR
•Image Enhancement: DWDR;BLC
•Noise Reduction: 2D DNR
Interface
•Video Output: Switchable TVI/AHD/CVI/CVBS
General
•Power: 12 VDC ±15%, Max. 2.1 W
•Material: Plastic
Dimension
•165 mm × 62 mm × 58 mm (6.50" × 2.44" × 2.28")
•400 g (0.88 lb.)
•Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
•Protection: IP66
