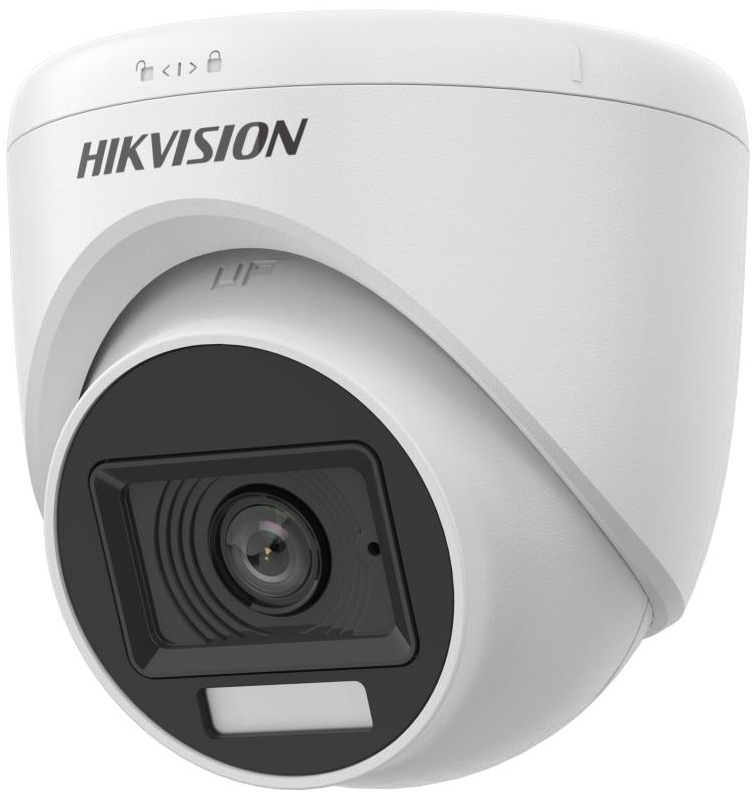

Hikvision 2MP Smart Hybrid Light Indoor Fixed Turret Camera

Product Overview

The Hikvision 2 MP Smart Hybrid Light Indoor Fixed Turret Camera delivers full HD 1080p video at up to 30 fps with a 2 MP CMOS sensor and switchable TVI/AHD/CVI/CVBS output. Its Smart Hybrid Light technology provides IR or white-light illumination up to 20 m, enabling clear colour imaging in low-light conditions. With a compact plastic turret design, digital WDR, flexible 2.8 mm or 3.6 mm lens options and 12 V DC power, it is ideal for discreet indoor surveillance installations.

Specifications

•Product Code: DS-2CE76DOT-EXLPF-2.8MM
•Description: Hikvision 2MP Smart Hybrid Light Indoor Fixed Turret Camera
Camera
•Image Sensor: 2 MP CMOS
•Max. Resolution: 1920 (H) × 1080 (V)
•Min. Illumination: 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
•Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
•Day & Night: ICR
•Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
•Signal System: PAL/NTSC

Lens
•Lens Type: 2.8 mm, 3.6 mm fixed focal lens
•Focal Length & FOV: 2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°
•Lens Mount: M12
Illuminator
•Supplement Light Range
•IR : Up to 20 m
•White Light : Up to 20 m
•Supplement Light Type: Smart, IR, White Light
•Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
•Image Settings: Brightness, Sharpness, Smart IR
Frame Rate
•TVI: 1080p @ 30 fps, 1080p @ 25 fps
•AHD: 1080p @ 30 fps, 1080p @ 25 fps
•CVI: 1080p @ 30 fps, 1080p @ 25 fps
•CVBS: PAL/NTSC
•Wide Dynamic Range (WDR): Digital WDR
•Image Enhancement: DWDR/BLC/HLC/Global
•White Balance: Auto/Manual
•AGC: Yes
•Day/Night Mode: Auto/ColorInterface
•Video Output: Switchable TVI/AHD/CVI/CVBS
•Material: Plastic
Dimension
•Ø85 mm × 84.6 mm (3.35" × 3.33")
•Max. 150 g (0.33 lb.)
•Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
•Communication: HIKVISION-C
•Language: English
•Power Supply: 12 VDC ± 25%, Max. 3.5 W
