Description

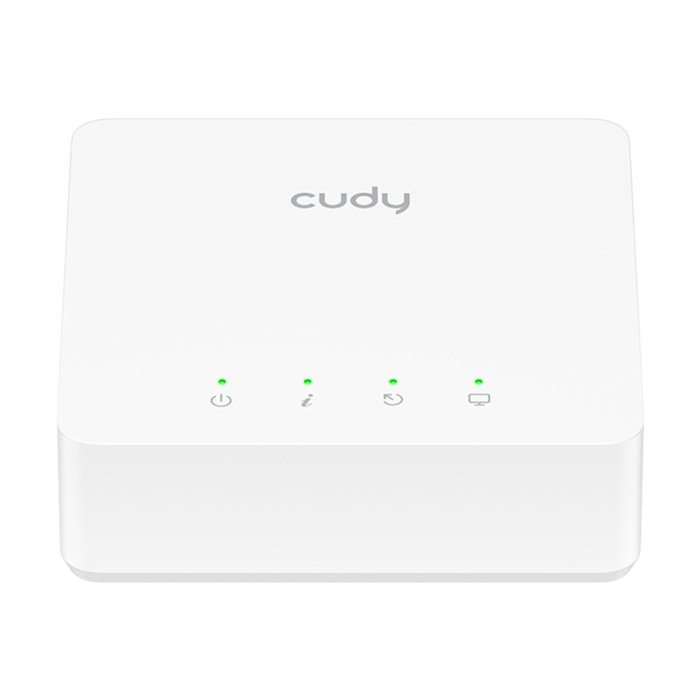

Cudy’s CD-GP10 is a gigabit, dual-mode GPON/EPON optical network terminal ideal for FTTH solutions up to 20km. The unit features OAM, OMCI, and TR069 remote management as well as a throughput of up to 2.5Gbps on GPON and 1.25Gbps on EPON.

Specifications

Data Rate: GPON: 2.488Gbps Downstream / 1.244Gbps Upstream EPON: 1.25Gbps Downstream / Upstream
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max Transmission Distance: 20km
Mounting: Desktop or Wall-mount
Operating System: Cudy
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None
Wavelength: TX: 1310nm; RX: 1490nm

Dimensions: 82×82×27 mm
Weight: 288g
